Az-Teq

Maximum Weight Rating Options:

• 160kg
• 130kg Drafting Chair Only

3-Lever Ergo Mechanism with Adjustable Seat Height, Seat Tilt and Back Angle

Ratchet Back Height Adjustment

Back Shape Options:

• Az-Teq Classic (featured on the Az-Teq Task Chair range)
• Square (featured on the bPlus Task Chair range, previously known as Miracle Task Chair range)

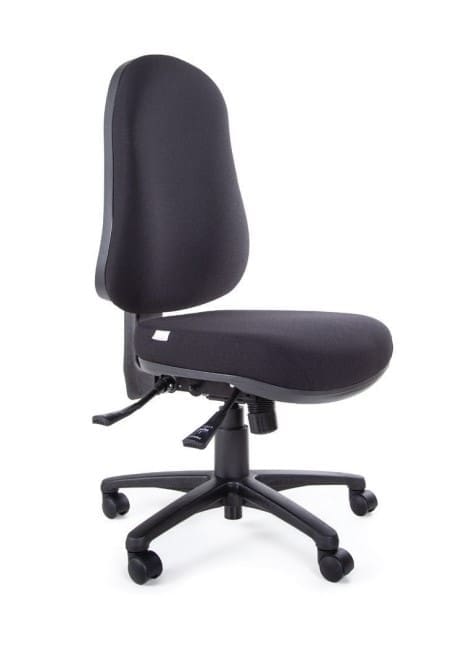

• Maxi Contoured Back (featured on the Miracle Maxi Task Chair range.  Available in a High Back size only)

Back Type:

• Adjustable back angle
• Anti-slip ratchet back height adjustment, 700mm
• Upholstered front
• Moulded polypropylene outer

Back Size Options:

Az-Teq Classic Medium Back:

• Width: 430mm
• Height: 380mm
• Height Range: 440-500mm
• Lumbar Pump

Az-Teq Classic High Back:

• Width: 440mm
• Height: 490mm
• Height Range: 470-520mm
• Lumbar Pump

Az-Teq Classic Extra High Back:

• Width: 480mm
• Height: 570mm
• Height Range: 490-570mm (From Floor to Top of Backrest: 1020-1150mm)
• Lumbar Pump

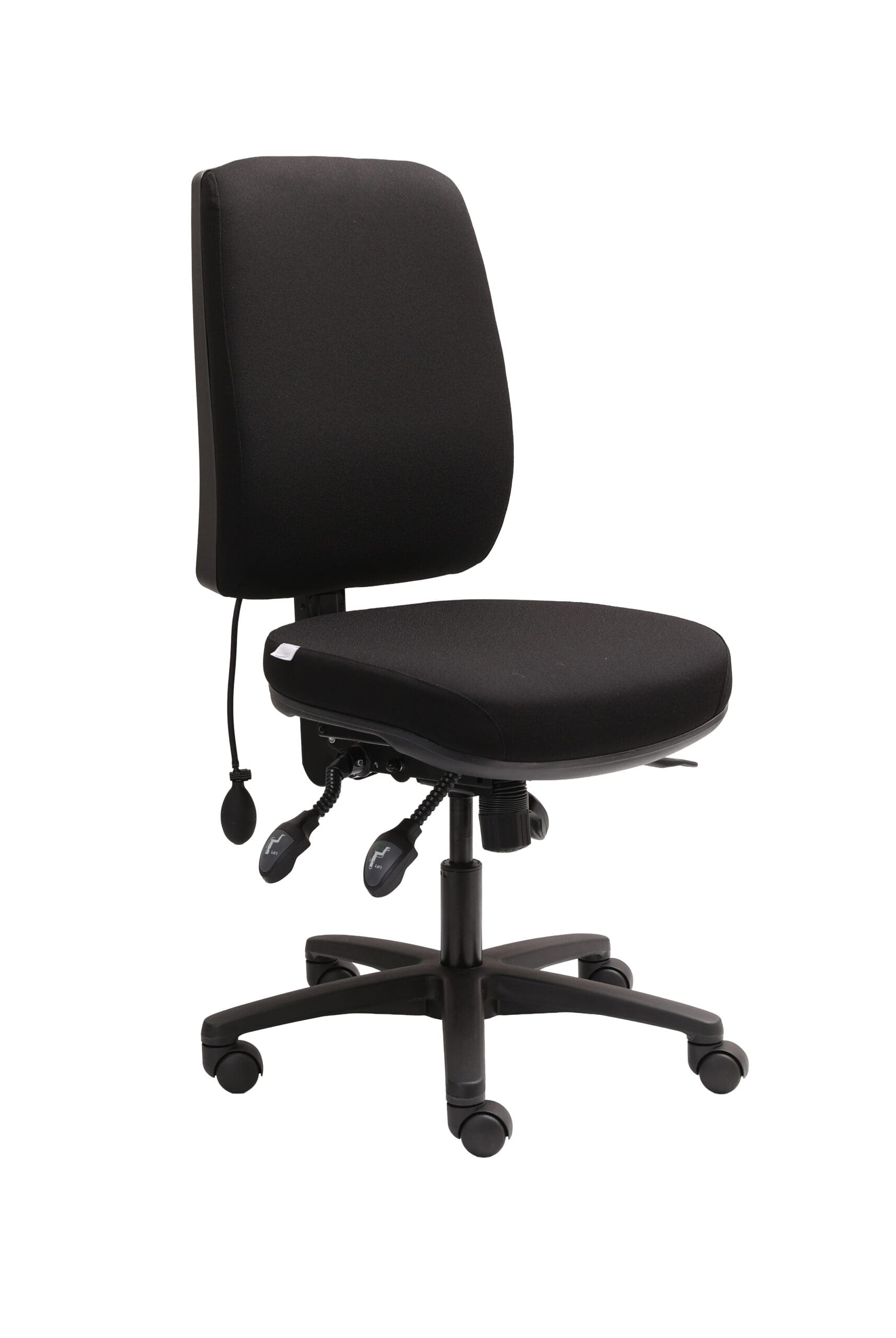

Square High Back:

• Width: 520mm
• Height: 420mm
• Height Range: 545-600mm
• Lumbar Pump

Seat Type:

• The Gel-Teq^TM cushion has been designed and developed in Australia and has rapidly become the leading advancement in seat technologies.  It is an all-new chemical compound that is neither Memory Foam, nor Visco-Elastic Foam.  The aim was to create a seat which offered 100% contact with the shape of the user, and which would readjust each time that user shifted in their chair.  It is always our philosophy to provide fully dynamic seating designs, and the target was to create a cushion which would be as flexible in its movement as the rest of the chair.  Working closely with design engineers and industrial chemists to create the concept, market trials were undertaken in late 2012 to gain feedback from a wide range of different users in many different working conditions.  These trials took place in Melbourne, Sydney, Newcastle, Adelaide and Perth.  Clients were asked to trial the new Gel-Teq^TM cushion in comparison to two other styles of seat and we received an overwhelming response in favour of the new style.  This unique hybrid foam combines the properties of Visco-Elastic Foam and Gel to create a seat which moulds itself to the precise shape of the user and cradles the pelvis to assist them in maintaining optimum seating posture for extended periods.  A good office chair should not just be comfortable when sat on for the first few minutes; it should continue to be comfortable for the entire day.  That is the difference between a Soft Foam and Supportive Foam.  Furthermore, the chair should be designed to aid the user to maintain a posture which will assist in the prevention of any new back-related injury from occurring.  Gel-Teq^TM responds to the movements of the user and as they do move throughout their working environment, immediately the Foam re-calibrates itself to the new posture.  By maintaining a correct posture throughout the day, not only is the risk of injury minimised, blood circulation is maximised resulting in increased productivity.  Many chair manufacturers combine different types and/or grades of Foams and make claims as to the healthcare benefits of having done so.  Gel-Teq^TM is an all-new hybrid platform that creates one balanced technology.

Seat Size Options:

Small Flat Gel-Teq^TM G2 Seat:

• Depth: 440mm
• Width: 480mm

Medium Flat Gel-Teq^TM G2 Seat:

• Depth: 460mm
• Width: 500mm

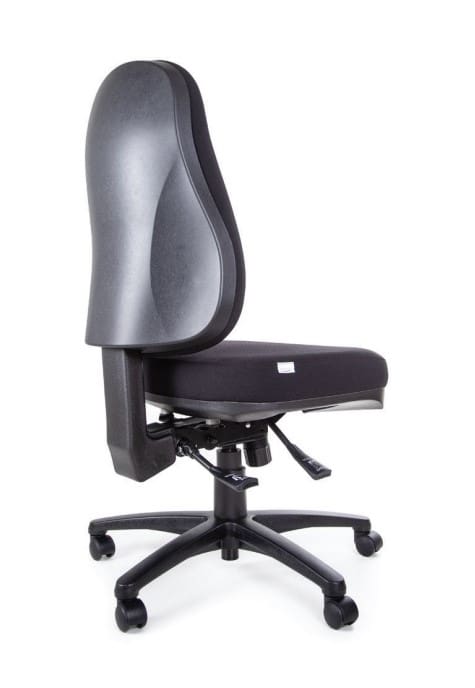

Large Flat Gel-Teq^TM G2 Seat:

• Depth: 480mm
• Width: 520mm

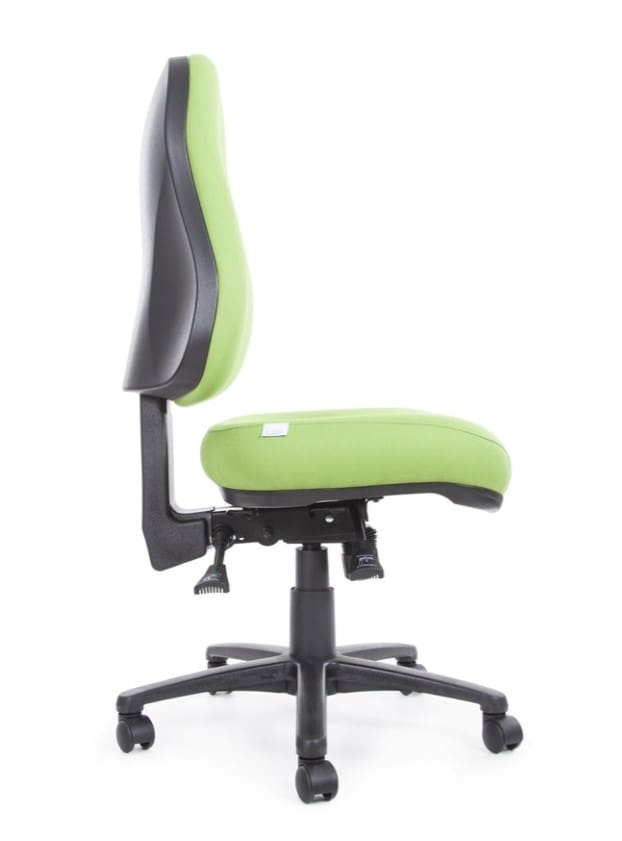

Extra Large Moulded Gel-Teq^TM G1 Seat:

• Depth: 500mm
• Width: 570mm
• 130kg Weight Rating

Seat Coccyx Cutout Option

Seat Slider Option: increases the seats depth by 50mm

Gas Lift Options:

• 140mm (Height Range: 440-570mm approximately, Standard)

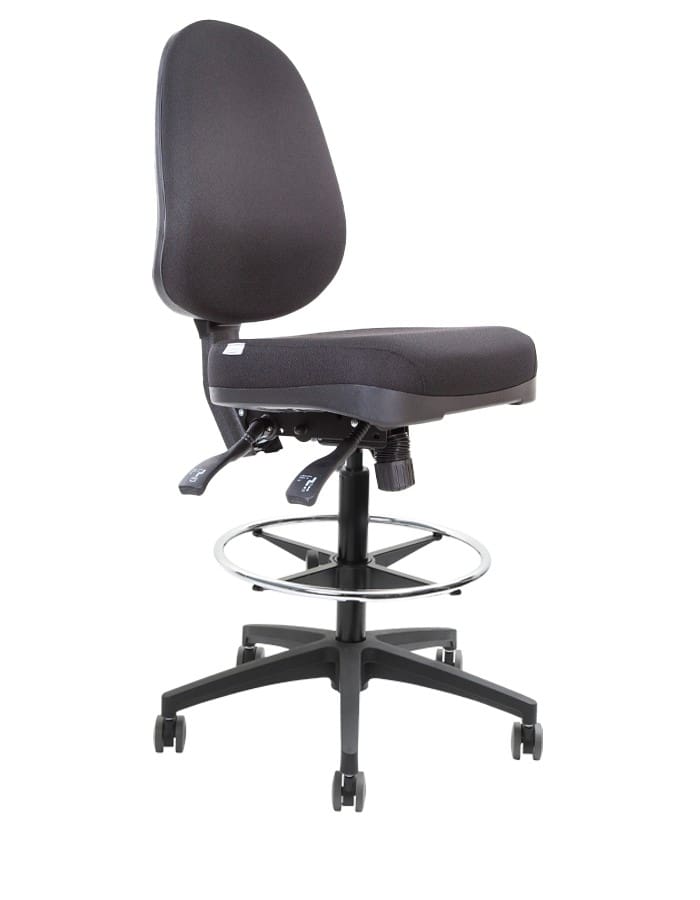

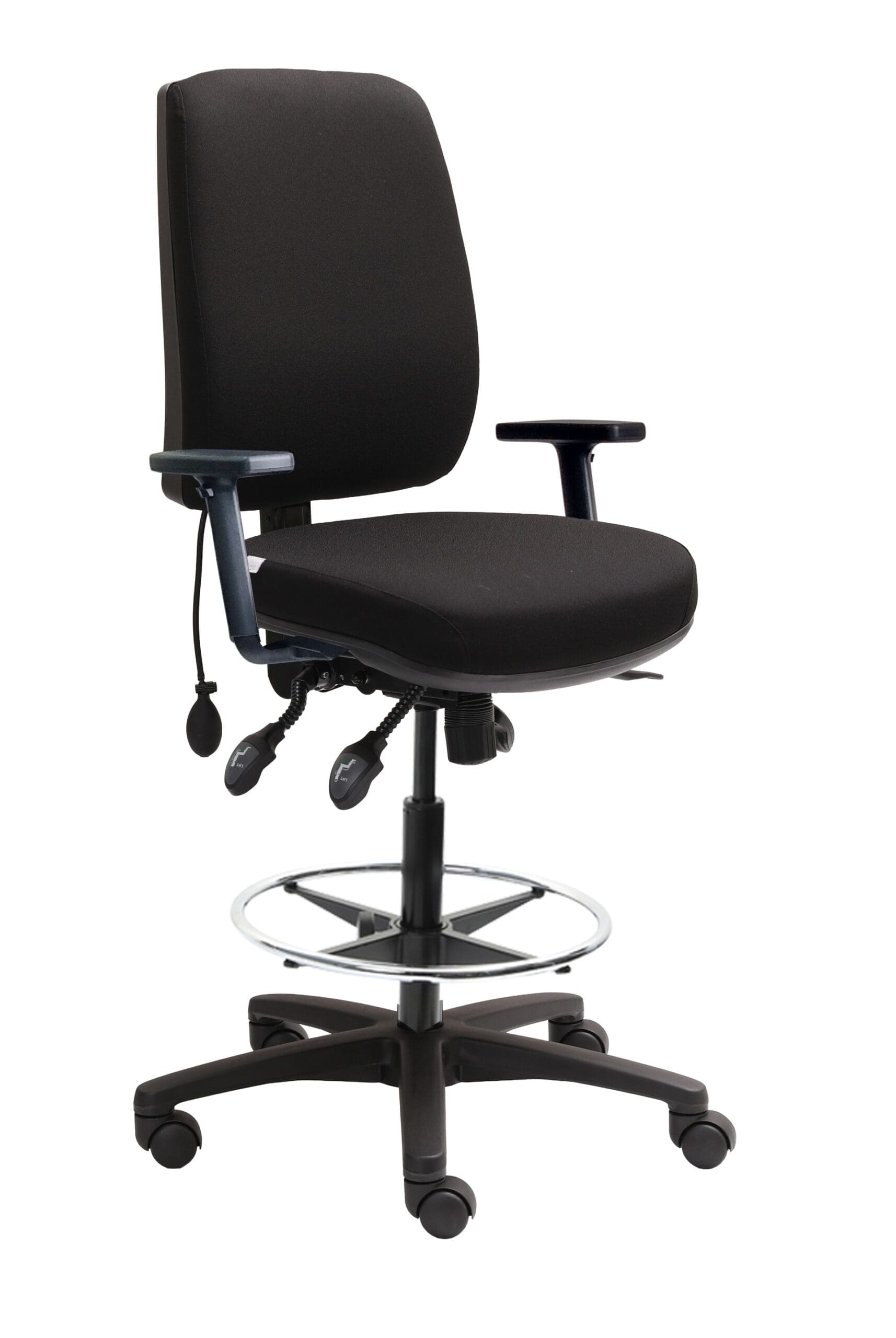

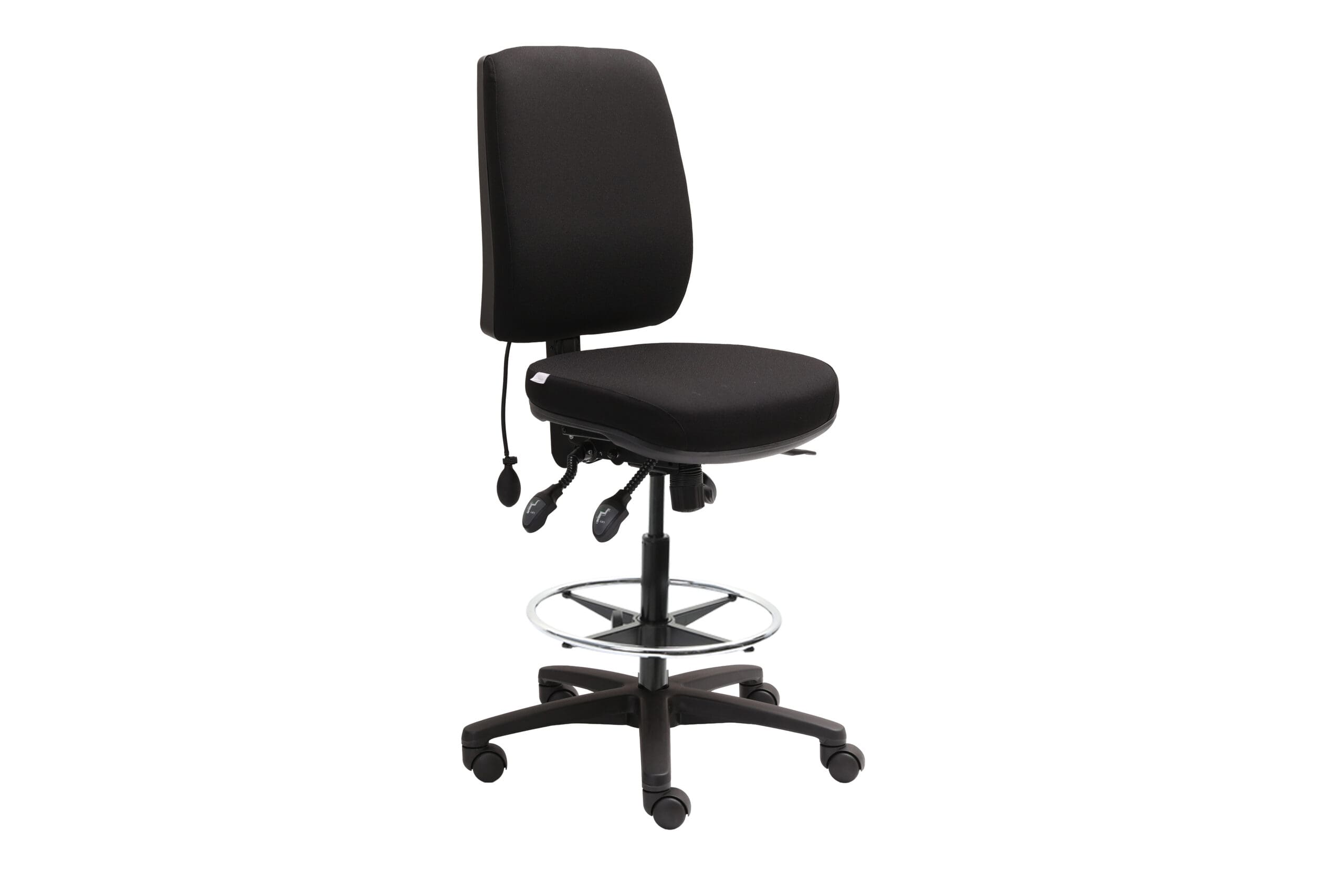

• Drafting Kit with tall 265mm and footring (Height Range: 600-850mm approximately, available with a Medium Back only).  130kg Weight Rating

Base Options:

• 640mm 5-Star Black Nylon (Standard)
• 700mm 5-Star Black Nylon (Standard)

Castor Wheel Options:

• 50mm Hard Freewheeling Castor Wheels (Standard, for Carpetted Floors)
• 50mm Pressure Lock Castors
• 50mm Pressure Release Castors

Fabric: Black Apollo (House Black Fabric) with Black Feature Stitching (Standard) – 100% Polyester; woven crepe fabric (inherenty stretch properties with exceptional regain); weight of 395gsm; in excess of 130,000 cycles (800g/12kpa) Martindale; Fastness to light 5+; Fastness to rubbing, wet 5 and dry 4.5; Flammability, BS EN 1021-1:1994 (Cigarette), BS EN 1021-2:1994 (Match), BS7176:1995 Low Hazard, Californea TB117 Section E; 5 Year Limited Warranty for normal use (8hrs p/day) and wear and tear.  Warranty covers workmanship in the production of the fabric.  Warranty does not cover misuse and abuse including, but not limited to, chemical exposure/cleaning agents, cuts, burns or wilful damnage caused by people or pets.  Warranty is only for the original owner of the furniture that the chair was sold to.

For customized upholstery, for no additional charge, Fabrics can be chosen from Laine Rave (100% Eco-polyester; GECA Environmental Certification; Commercial Heavy Duty Upholstery Fabric; Made in Australia; 12 Year Warranty) or Sustainable Living Fabrics Sustainable Renegade Range (100% Eco-polyester; GECA Environmental Certification; Commercial Heavy Duty Upholstery Fabric; Made in Australia; 12 Year Warranty).  Additional charges apply for other customized Fabrics.  Please allow 4-6 Weeks for Manufacture and Delivery.  A small variation of the final seat size may occur depending on the upholstery chosen.)

AFRDI Level 6 Certified

Purchase Includes: 1 x Task Chair as selected fully assembled and ready to use

If you require any support with this product, Chat, email [email protected] or phone us on 0403 693 780.

Australia Wide: 1-4 Weeks.  Please note, longer delivery time frames can sometimes occur.

Need it urgently or want to know when you will receive your order?  Check with us before placing your order.  Chat, email [email protected] or phone us on 0403 693 780.

Troubleshooting:

Issue: How to adjust the back of the chair

The back of the chair is on a ratchet which is designed for adjustment of the back height (up and down).  Usually, the ratchet will have 6 – 7 clicks of adjustment, or have a Multi-click Mechanism that has a higher number of smaller click adjustments.  Once the back reaches the top/highest notch, the back will drop down to allow the user to reset the height.

To reset the back of the chair, take the back all the way to the bottom and then raise it click by click, counting the clicks as you go, until it drops.  On the last click, before the back drops, is the maximum height the back can be set to.  This is harder to do on the Multi-click Mechanism.

Some people adjust the back while seated and raise it past the height of the last notch.  Because the person’s back is in contact with the backrest, the back may not drop until the person moves their back away from the chair.  Some people push back into their chair while seated, or accidentally raise the back when getting out of the chair.

If the back will not lock into position, repair is required.  To confirm, try raising the back a few notches from the lowest height position and push down on the backrest.  If it does not hold that position, the back is faulty.

If you are having any issues with this product, Chat, email [email protected] or phone us on 0403 693 780.

Warranty:

7 Years (Standard Use – 8 hour usage per day, 5 days per week)

3 Years (24/7 Extended Use)

Fabric: 5 Year Limited Warranty for normal use (8hrs p/day) and wear and tear.  Warranty covers workmanship in the production of the fabric.  Warranty does not cover misuse and abuse including, but not limited to, chemical exposure/cleaning agents, cuts, burns or wilful damnage caused by people or pets.  Warranty is only for the original owner of the furniture that the chair was sold to.

During this period, the Chair’s manufacturer will undertake to complete all warranty repairs at no charge, and on a prompt basis.

Please note, any repair that has been caused by anything other than acceptable wear and tear, will not be deemed as a warranty issue – and we will therefore provide you with a quotation for any required works, prior to the commencement of those repairs.

If you believe the chair is faulty, please refrain from using the chair. Damage that occurs as a result of continued use of a faulty product will not be covered under warranty.

What do I do if the chair is faulty?

1. Cease using the chair as it may be unsafe to use.  Damage that occurs as a result of continued use of a faulty product will not be covered under warranty.

2. Complete and return the Product Repair Request form
